Features:
- DC input
- Automatic On/off control with Daylight sensor
- Compact sized suitable for ceiling light troffer , triproof light, LED tube and etc
- Remote control
- 3 year warranty
Specifications:
| Operating voltage: | 8-15V DC (supply current>5mA) |
| Operating current: | ＜30mA |
| Output: | 1-10V |

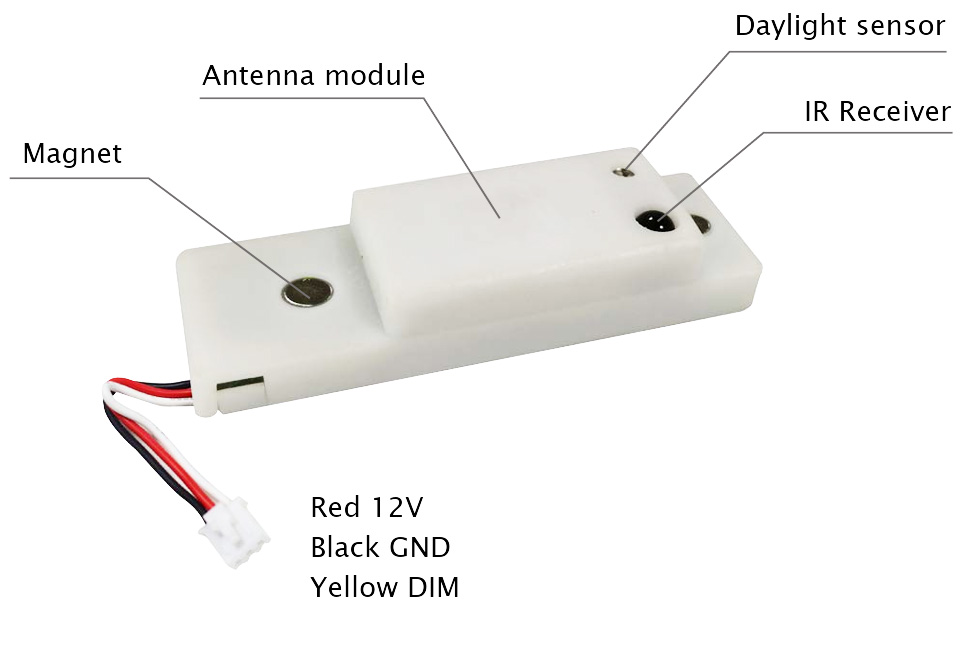

| Control line: | Cable length 60mm , Red 12V，Black GND,Yellow DIM |
| Detection area: | 100%/75%/50%/25% |
| Hold-time: | 5s/30s/1min/2min/5min/10min/20min/30min |
| Daylight threshold: | 2lux/10lux/30lux/50lux/80lux/120lux/Disable |
| Stand-by period: | 0s/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level: | 10%/20%/30%/50% |
| Microwave frequency: | 5.8GHz±75MHz |
| Microwave power: | <0.3mW |
| Mounting height: | Max. 6m (ceiling mounted) |
| Detection range: | Radius.DxH: 2-4mx6m (ceiling mounted) |
| Detection angle: | 30°-150° |
| Operating termperature: | -40°C~+80°C |
| Size: | 68*20.5*12.1mm |
| Warranty: | 5 years |
